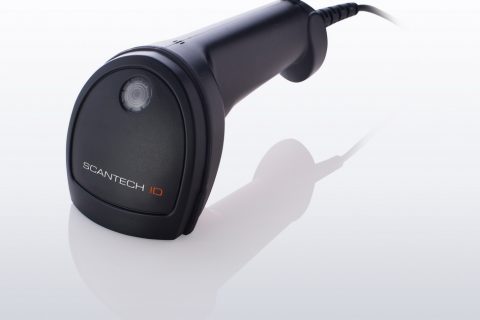

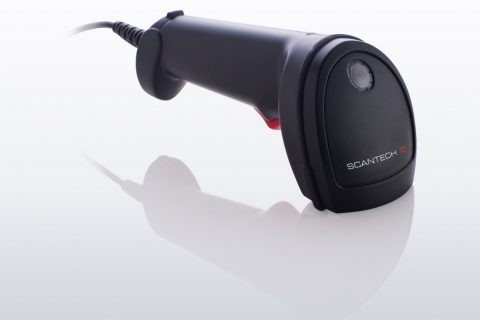

Barcode scanner IG620

IG620 is a brand new general purpose handheld area image bar code scanner which is designed especially for retail, logistic and health care management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by customers to accommodate it to user environments. IG620 supports with up to 300mm reading depth of 1D and 2D barcode, its scan rate is 60 images per second. Based on CMOS technology for optimal image sensitivity and dynamic range, the IG620 features scanning speeds two times faster than traditional 2D imagers. In short, IG620 is a high performance handheld area imager scanner provides customers the most cost-effective solution in the market and perfectly suitable and definitely the best choice for any retail,logistic and health care management environment.

  • Supports 1D and 2D barcode scanning with up to 300mm reading depth
  • Support automatic detection and wake-up reading mode
  • Supports 1.5m dropping resistance
  • 3 in 1 Combo Interface, changes Interface by replacing cable

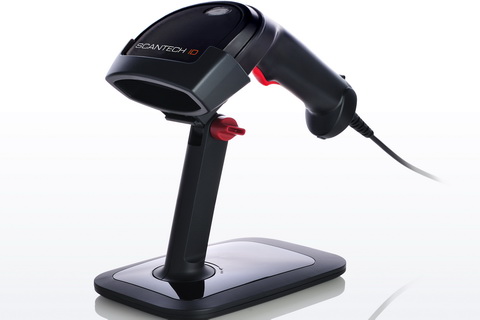

  • A stand option can be ordered to facilitate hand-free reading options
Environmental
Ambient light Up to 100,000 Lux Max.(sunlight)
Specifications
Dimension(WxDxH) 169.2x71.1x62.6mm
Light Source 650±10nm VLD
Filed of View Horizontal: 40°, Vertical: 25°
Depth of Field Up to 300mm@20mil/0.5mm, PCS90%, Code39
Resolution 1D: 4mil/0.1mm ; 2D: 10mil/0.26mm
Scan Rate 60 images per second
Indicators Beeper and LED
Drop Resistance 1.5m (wired model) ; 1.2m (wireless model)
Print Contrast Ratio 45%
Electrical Characteristics
Interface RS232, USB (HID, Virtual COM), KBW
Power DC 5V

Downloads – here

Accessories

Adaptor-5V(180 degree)
Cable-CHK-IG610/710-RS232(Black)
Cable-CHK-IG610/IG710-USB(Black)
Cable-CHK-USB(Beige)
Cable-CHK-USB(Black)
Stand-SG/LG/IG6xx Series(Black)
