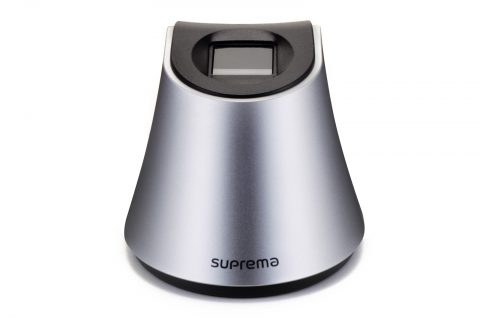

Fingerprint Scanner BioMini

The BioMini has been designed specially to provide high-level biometric security for desktops as well as complex network environments. Our latest range of high-performance fingerprint USB scanners are supported by powerful software development kit (SDK) which features Suprema award-winning fingerprint algorithm. Ranked top in FVC 2004, 2006 and NIST MINEX tests. Suprema PC solution provides unrivaled versatile platform for development to leading security companies, system integrators, and hardware manufacturers.
BioMini SDK is suitable for applications where fingerprint enrollment and recognition can be done on PC or network-based systems with Suprema USBfingerprint scanner such as BioMini or SFU-300. Suprema supplies different types of USB fingerprint scanners that can work together with BioMini SDK.

Specifications

  • Optical sensor
  • Image format is : ISO19794-4
  • Compression Standards: WSQ
  • Template Format: Suprema, ISO19794-2, ANSI-378
  • USB 2.0 compatible interface, plug and play device
  • Optical, high resolution: 500 DPI
  • Image Format: 288 х 320 pixels
  • Image format is 8 bit 256 grayscale
  • Sensing area: 16 x 18 mm (H * V)
  • Size: 66 х 90 х 58 mm
  • Operation temperature: -10 до +50 C
  • Power supply voltage: DC 5.V, 150 mA max
  • Supported OS: Windows, Linux, Android 4.1(Jelly Bean) и по-нови
  • Certification: CE, FCC, KC, WHQL
