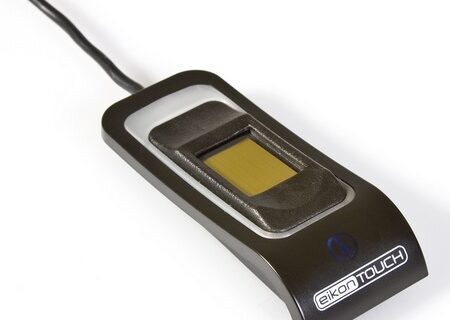

Fingerprint reader Crossmatch Eikon Touch 710

The fingerprint reader EikonTouch™ 710 from Crossmatch is especially adapted to applications which require FIPS 201 compliance. It is equipped with multiple LEDs to inform the user about device and capture status. For special demands, the EikonTouch™ 710 is able to encrypt fingerprint transmission. The EikonTouch™ 710 is supported by BioIDENTICA SDK as of version 2.1.5.0. Since version 2.1.6.1, user feedback functions and USB encryption are made available to software integrators.

Specifications

  • FIPS 201 PIV за EikonTouch 710
  • Fingerprint сензор: TCS1C (капацитивен)
  • Dimension: 84 mm x 33.8 mm x 14.3 mm
  • Scanning area: 12.8 mm x 18 mm
  • Optical, high resolution: 256×360 pixels
  • Weight: 74 g
  • Acquisition Speed: 5.5 frames/sec
  • Optical, high resolution: 500 dpi
  • Image format is 8 bit 256 grayscale
  • USB 2.0
  • USB Data Encryption AES-56 (no export restriction), AES-128 (export restrictions)
  • ПOn-board Data Storage 256 bytes for private data (optional)
  • ESD Protection IEC 61000-4-2 level 4: 15kV air, 8kV contact
  • IP 63
  • Operating Temperature 0° to +40° C
  • Protective Coating 2 million touches (Eikon 710), 4 million touches (Eikon 510)
  • Humidity 5% до 93% RH @ 30° C

Standards Compliance

  • Microsoft WHQL
  • FCC class B, CE
  • USB

Интеграция

  • Supported OS Windows® XP, Windows Vista®, Windows 7, Windows 8, CE, Linux® Kernel 2.6 и по-нови, Android® 4.0 и по-нови
  • Development Kit Options EikonTouch Reader Developer Kit
