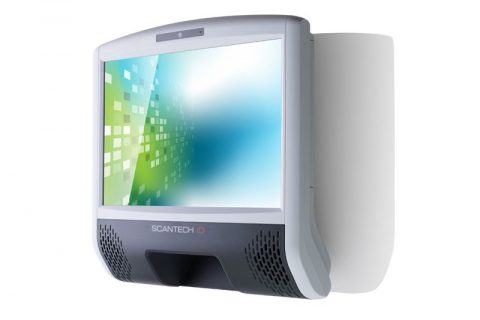

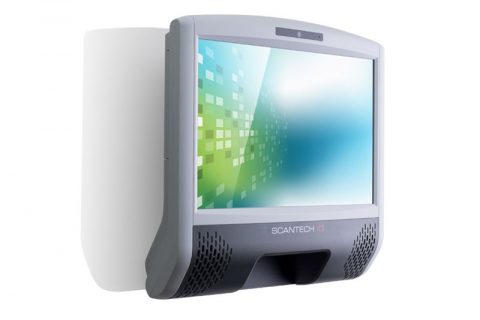

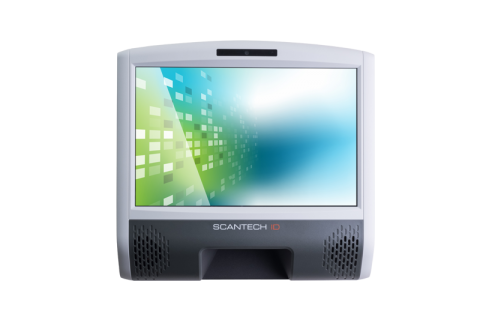

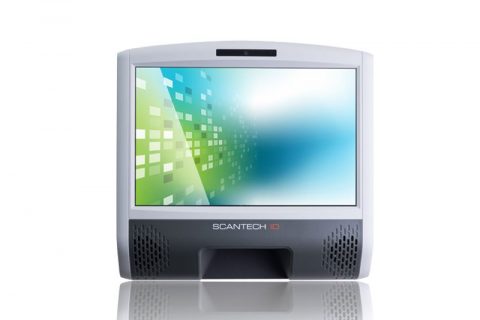

Scan kiosk SK100



The SK-100 is a multifunction scan kiosk designed for diversified applications in self-service, ID identification, information service, multimedia service, digital signage and your customized interactive applications and services in every environment of retail, transportation, medical care, hospitality and office building. SK-100 is the best self-service kiosk solution with powerful hardware, open platform of Linux or Android, and flexible hardware options in a compact body. It comes with security protected web-based management tools allowing easy management from a remote. SK-100 brings productivity, efficiency, and convenience to your business and service in good price budget.

  • The SK-100 is built with hardware capability of:
  • 10.1-inch LCD display with capacitive multitouch screen
  • Powerful dual-core ARM Cortex-A7 processor
  • Linux or Android operating system
  • LAN and WIEI network connectivity in option
  • 2D imager scanner, NEC reader in option
  • Scalable options in PoE, video camera, Bluetooth audio
  • Audio and video streaming or playback
  • HDMI port for external display scalability
  • 3 USB ports for peripheral expansion (barcode scanner, smart card reader, printer, keyboard, mouse, flash disk)t
System Architecture
Processor ARM Cortex-A7 Dual-core CPU
Operating Platform Linux 3.0 or Android 4.4
Power Supply DC 12V/1.5A Power Adapter or Power over Ethernet 802.3af (optional)
Dimensions (WxHxL) 238.15x253x71.5mm
Weight Approx. 1.2kg
Memory RAM 1GB or 2GB LPDDR3
Output Media
Image Format PNG, JPEG, GIF, BMP
Audio Format WAV, WMA, MP3
Video Format MPEG-4, H.264
Display Size 10.1-inch TET-LCD
Brightness 500 nits
Resolution 1280x800 pixels
Touch Screen Capacitive type
Environmental
Operating temperature 0°C to 40°C (32°F to 72°F)
Storage temperature 20°C to 6OC (-4°F to 140°F)
Humidity up to 95% RH (non-condensing)
Ambient light up to 100,000 Lux
Network Interface
Wired LAN 10/100Mb Ethernet 802.3; Power over Ethernet 802.3af (optional)
Wireless LAN 10/100Mb Ethernet 802.3; Power over Ethernet 802.3af (optional)
Encryption protocols WPA, PSK and WPA Enterprise security
Specifications
Light Source 632±5nm Red LED
Resolution 0.127mm/5mil UPC/EAN, 0.26/10mil 2D barcode
Indicators LEDx2
Electrical Characteristics
Interface USBx3,HDMIx1,,RS232x1,LANx1(for Ethernet or PoE), GPIO x 2 (2-pin input, 2-pin output)
