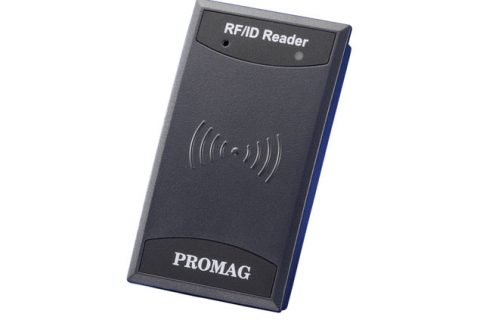

RFID reader mf7



The MF7 is a very high-performance proximity reader. This well-designed reader is packed with technical features that have medium range capability and a small footprint. The MF7 reader is the best choice for system integrators because of its wide range of power inputs (between 5V to 18V DC). Even at 5 Volts (DC), the MF7 features a good reading range. The MF7 reader also comes with a variety of Three-In-One interface, RS-232, MSR ABA TK2 and Wiegand interfaces allowing it to integrate with a variety of applications, especially security access control.

  • Reading distance: up to 50mm
  • Frequency: 13.56 MHz
  • Read Mifare UltraLight and MF1 Standard cards
  • Three -In -One interface, with Wiegand, MSR ABA TK2 and RS232 interfaces
  • Fast data transfer
  • Weather resistant
  • High data integrity
  • User convenience
  • Easy to install
  • Available to install on metal surface

Specifications
Electrical
Power Requirements:5~18 Volts regulated DC at 200 mA typical.      A linear regulator is recommended.
Interface:
Wiegand
MSR ABA Track 2
RS232
Or special customized specifications.
Interface Cable – 90 cm
Reads Mifare MF1 standard cards for 1024/4096 byte and Mifare Ultralight cards of EEPROM size 512bit for ISO 14443A and Mifare DESFire.
Typical Maximum reading distance: Up to 50mm at 5~12V with Mifare card in ideal conditions.
Operating frequency:  13.56MHz standard
Read Only for Unique Serial Number / Unique Identifier ISO/IEC 14443 Type
External control Audio / Visual Indication: Internal LED and Buzzer

Mechanical
Dimensions: 83 (L) x 47 (W)x 16(H) mm
Housing material: ABS

Environmental
Operating temperature Range: -10 to 60 Deg C.
Operating relative Humidity: 10 ~ 90%.

  • Access controls
  • Security system
  • ID card for admission control
  • Personal Identification
